V4 - V4R consoles
model scph-3xxxx + 8 screws
model scph-3xxxxR + no extra screw
Lusifer mod



Soldering is for research...

Loss of PS2 Guqrrantee!

Lusifer mod installation, requires only 1 Philips screwdriver to open the console and 10 minutes!

It is strongly recomended to be done by specialized technics, because you have to break the guarantee shield and lose your guarantee!

-- Step#1

...connect Eject-Reset button to Lusifer mod

Disconnect the Ribbon cable from the mainboard


Connect it to Lusifer mod connector#1


-- Step#2

...connect Mainboard to Lusifer mod

Connect with the extra Ribbon Cable
mainboard <-> L-mod connector#2



-- Step#3

...connect G1-Plug In

Disconnect the wad with red-black wires from mainboard


Connect it in G1-Plug In


Connect
short edge of G1-Plug In <-> to mainboard



Connect
long edge of G1-Plug In <-> to Lusifer mod.

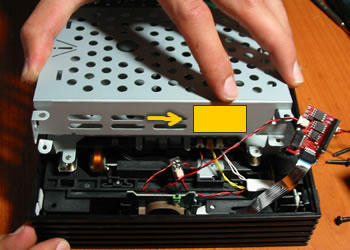

Place Lusifer mod - ENJOY YOUR GAME!


.

..


1. Insert your model (SCPH-xxxxx)
2. Select your system (PAL-NTSC)
3. Insert your serial (f.e. c256731)
4. Select your version
