MAIN FEATURES:
Autoboot on all consoles v1-v12,
just insert any PS2/PS1 disc / DVDvideo and press RESET! No procedures!
DEV1 mode on all v1-v12 consoles.
The code runs "mc0:/boot/boot.elf" whed DEV mode is executed!
Quality PCB design with
laser-etched solder mask and automated components assembly!
Uses latest ICE FINAL code (all
credits go to the one and only ICE TEAM)!
Direct boot of any PS2 CDR/DVDR,
even multi-elf backups!
PS1 import fix - PS1 games display
at full screen!
Macro-OFF + green-fix!
|
The H2O mod is the newest
addition to the SubZero family. It sports all the features of the SubZero
2 with a reduced wire count (no TR wire needed for autoboot) AND it has
the SubZero fix psTwo protection ONBOARD. By adding J and K wires your
psTwo will need no other fix, just the H2O modchip inside :-)

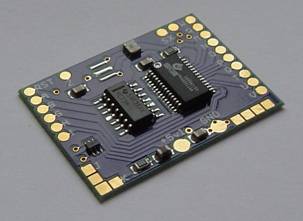

The pcbs are very stylish,
resembling a very popular mod with its colour and 24 carat gold pad and
via protection. But that is not all, we went all out and added a
special 2 layer print to achieve a blue/gray/green effect. Not that it
is needed for the operation of the chip, but quality needs to be
stressed in all fields ;-)
ΣΧΕΔΙΑ ΤΟΠΟΘΕΤΗΣΗΣ
V1a V1c V3 V4 V5
V6 V7
V8
V9
V10 V11
V12
onboard v12 fix diagram
V13 V14
|
USAGE:
MEDIA: Insert PS1/PS2/DVD disc and press RESET
CHIP-OFF: Hold RESET till picture on TV appears
DEV1: Do procedure for CHIP-OFF + tap 1x RESET
FORCE PS1/DVDvideo MODE: Hold RESET 1.5sec
EACH MODE ACTIVE UNTIL STANDBY!
|
