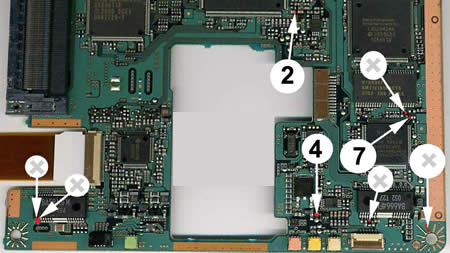

Installation Diagrams of Lusifer full in V4/V4R consoles - 3 points!

For Lusifer full installation,
solder only the points with numbers 2, 4, 7!
The right capacitor is included in Lusifer full board, for your quick boot!

Soldering in PS2 mainboard, may tunne off your Laser Adjustment!
GRmods is not responceble about that...
